| Drive Type： | 4WD |
| Ground Clearance: | 285mm |
| Construction Mass: | 660kg |
| Engine Specifications | |
| Type: | 4-cylinder, vertical, in-ine Cylinder Arrangement,Radiator Cooling, 4-stroke Cycle, Direct injection |
| Rated Power: | 18.5kW |
| Rated Speed: | 3600rpm |
| Bore xStroke： | 77x81mm |
| Total Displacement： | 1.508L |

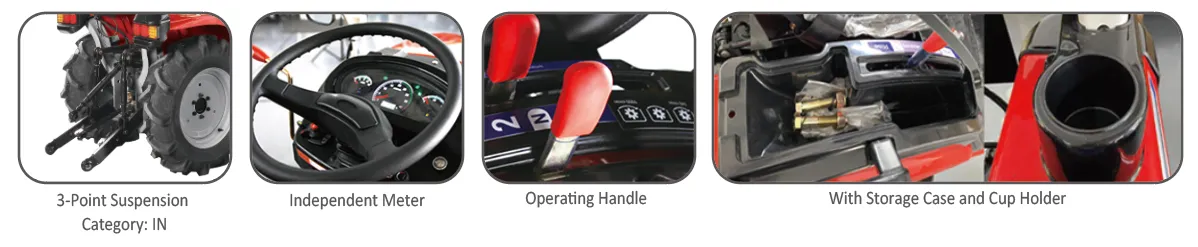

| Main Configuration 1.Single Function Clutch 2.Twin turning Speed of P.T.O. 3.Hydraulic Steering 4.Metal Hood 5.Independent Meter 6.Front Balance 7.Quality Seat With Safety Belt 8.Shoe BrakeTractor Parameters |
Electric Start Drive System Clutch: Single Function Gear Box: 9+3 Main Drive: One Pair of Spiral Bevel Gears Differential: Bevel Gear Differential Lock: Jaw Lock Final Transmissions: Spur Gear, External GearingTraveling Mechanism Steering Gear: Hydraulic steering Brake: Shoe type |
Working Device Hydraulic System Lifting Capacity at 450mm Behind Lift Point 350kg 3-Point Suspension Category: lN P.T.0. Shaft: Rotating Speed (rpm) 550/967 Spline Size 6-ф35 Rectangular Spline Front Wheel With Inner tube,steel Hub,dry land Wheel Specification 5-12 Wheel Track 750(standard)/960~1200(adjustable) Rear Wheel Without Inner Tube, Steel Hub, Dry land Whee Specification 8-16 Wheel Wrack 760(standard)/960~1200 (adjustable) |
